977 Roll Up Door

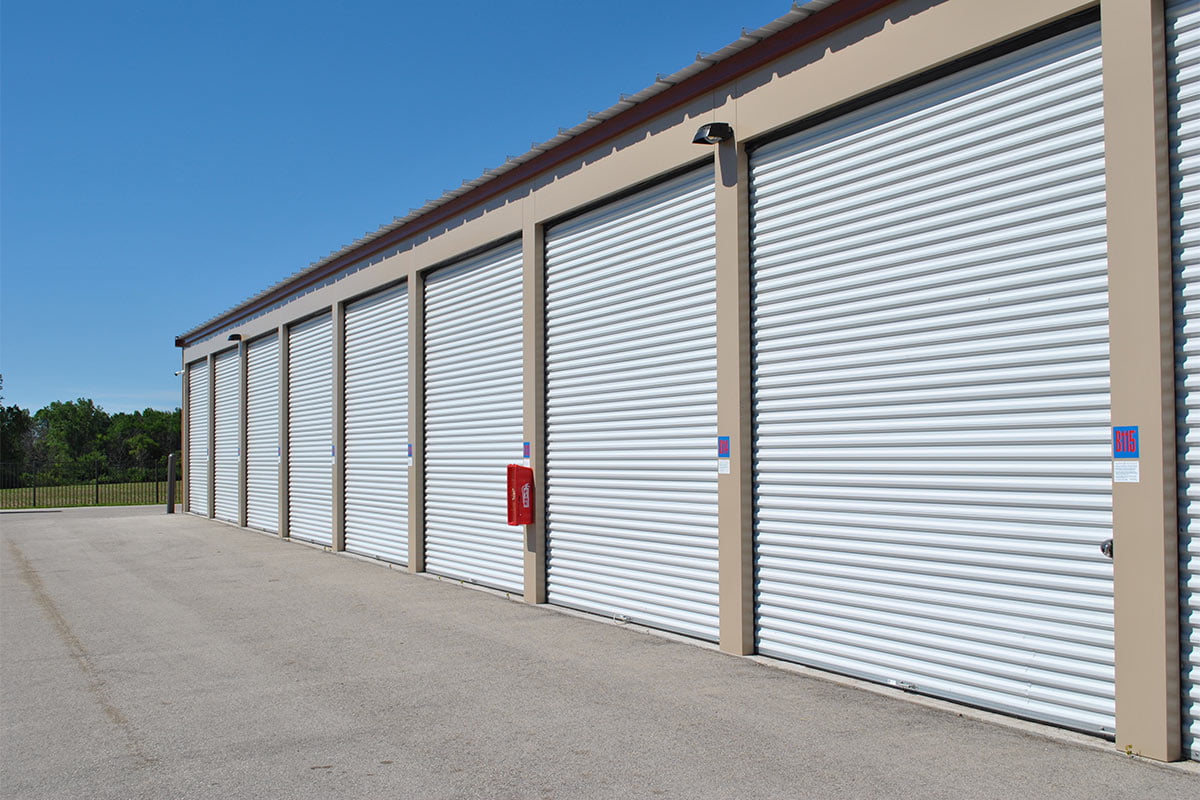

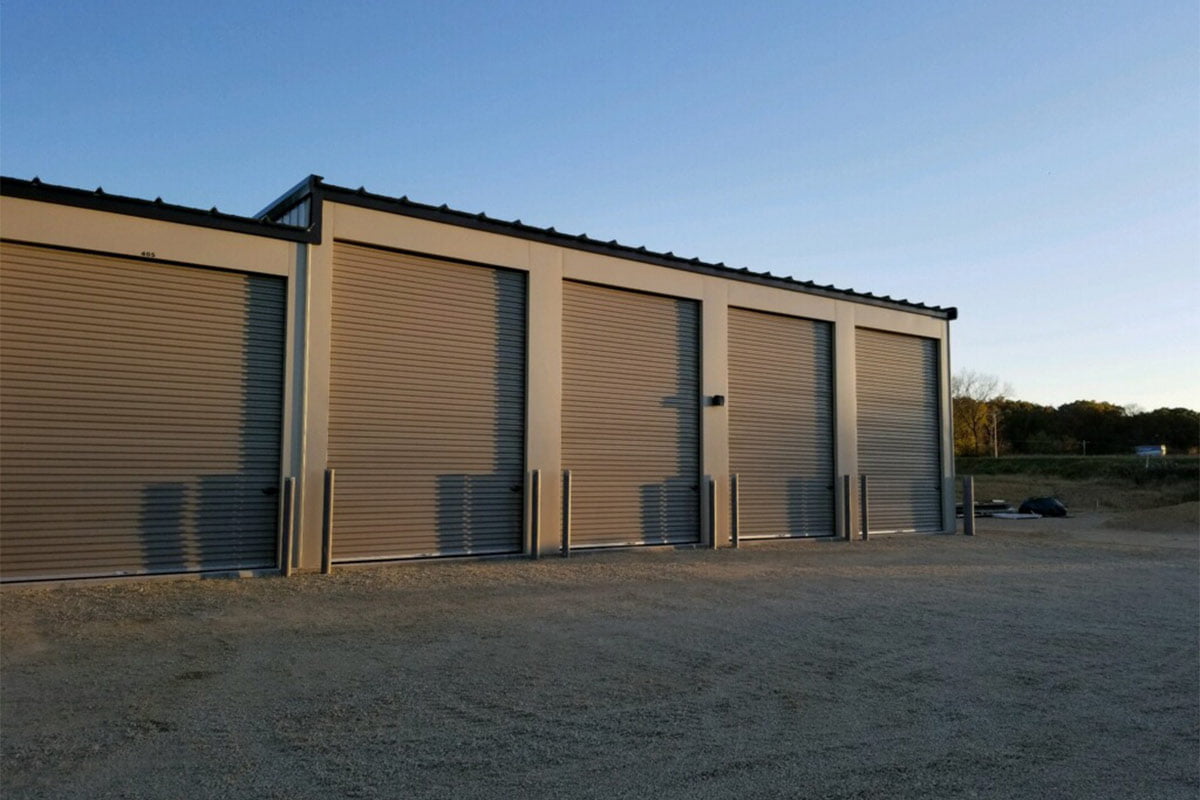

Built for Large Self-Storage Units
Constructed with a continuous curtain of solid steel, the 977 is designed to handle the demands of larger storage spaces. Its robust build ensures reliable security and low maintenance, while a range of color options enhances the look of your facility.
Custom Sizes for Your Unique Needs
The 977 Roll-Up Door is available in custom sizes from 8’W to 14’W x 16’H, adjustable in 1-inch increments to fit your specific project requirements.
Backed by a 3-Year Warranty
Every Trac-Rite 977 door includes a 3-year material warranty, giving you confidence in the long-lasting quality and durability of your investment.
Key Benefits
- Heavy-duty steel construction for large unit security
- Custom sizing for precise project fit
- Attractive color options to match facility aesthetics
- Low-maintenance design for operational efficiency
- 3-year material warranty for peace of mind
The 977WL Model Trac-Rite® door is ideal for large self-storage projects such as boat and RV storage, as well as some light-duty commercial applications, including institutions and recreational facilities. Continuous curtain of solid steel is durable, attractive, and available in a variety of colors. The 977 is available in custom sizes from 8’W to 14’W x 16’H in 1″ increments. All 977 Model doors come with a 3-year material warranty.
The 977 is available in custom sizes from 7’0″ to 12’0″ widths and 8’0″ to 16’0″ heights.
The 977WL is available in custom sizes from 8’0″ to 14’0″ widths and 8’0″ to 16’0″ heights.
Both door types are fabricated in 1″ increments.
Product Features
Performance. Value. Service.
Helical Torsion Springs
No maintenance EP3 helical torsion high-performance springs are coated for increased life. Felt tape located at each spiral drum allows the door to operate and coil with ease.
Door Tensioner
Saddle with tensioner device makes adjusting the door tension easier, safer, and quicker than clamp and bracket designs
Chain Hoist
Chain hoist mounts directly to the axle for easy installation. 8:1 reduced drive allows for smooth operation.
Bottom Assembly
The sturdy galvalume bottom assembly is fitted with the Seal-Rite bulb and blade astragal for a protective weather seal. Zinc-plated exterior handle and molded plastic pull rope handle provide effortless opening and closing of the door.
Colors
Standard, prefinished colors.
Dark Charcoal Gray
Note: Colors shown vary from actual material. For an accurate color sample, please contact Trac-Rite Door at 800-448-8979
Model 977 & 977wl Doors are great for
- Boat / RV Storage
- Agricultural
- Self Storage
- Light Industrial
Model 977
Design Type
- Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
- Axle is high-yield structural tubing with 1-5/16″ outside diameter. Drums are 12″ diameter spiral x 1-1/2″ wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. Springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
- Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2″ felt tape for smooth rolling and reduced marring.
Bottom Assembly
- Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
- Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
- Easily adjustable one-piece saddle accepts 1-5/16″ diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides - Zinc-coated, 1-2/3″ deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Chain Hoist
- 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Exterior Latches
- Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16″ shank. Accommodates Trac-Rite’s optional SpaceGuard cylinder lock for easy over-locking.
Mounting Fasteners - Steel or wood fasteners included.
Steel
- Bracket: 1/4″ x 1″ self-drilling screws
- Jamb: 1/4″ x 1″ self-drilling screws
Wood
- Bracket: 3/8″ x 2-1/2″ lag bolt
- Jamb: 1/4″ x 1-1/2″ self-drilling screws
Masonry
For masonry openings, mounting clips are sold separately. Masonry anchors are furnished by the Buyer.
Door Stop
- 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
Pull Rope Handle - Molded plastic rope handle with long-lasting rope.
NOTE: Product specifications are subject to change without notice.
Model 977WL
- Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
- Axle is high-yield structural tubing with 1-5/16″ outside diameter. Drums are 12″ diameter spiral x 1-1/2″ wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. Springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
- Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
- Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
- Easily adjustable one-piece saddle accepts 1-5/16″ diameter axle. Double cams lock the axle in position and maintain tension on the springs.
- Zinc-coated, 1-2/3″ deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
- Black Nylon 6/6 secured to door with two 3/16″ stainless steel rivets.
- 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
- Rust-resistant cast zinc alloy with black nickel finish. Latch bar, embossed for strength, is compatible with magnetic security systems. Designed to accommodate two padlocks up to 7/16″ shank. Accommodates Trac-Rite’s optional SpaceGuard cylinder lock for easy over-locking.
- Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
- 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
- Molded plastic rope handle with long-lasting rope.
Model 977 Wind Load Ratings
TDI# GDR-157
Less than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
|---|---|---|---|---|
8’0″ | -24.8/+22.5 | 180 | 147 | 134 |
9’0″ | -22.0/+20.0 | 170 | 139 | 126 |
10’0″ | -17.6/+15.4 | 153 | 125 | 113 |
11’0″ | -16.0/+14.0 | 146 | 119 | 109 |
12’0″ | -12.0/+10.0 | 127 | 104 | 94 |
Greater than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
|---|---|---|---|---|
8’0″ | -24.8/+22.5 | 172 | 141 | 128 |
9’0″ | -22.0/+20.0 | 163 | 133 | 121 |
10’0″ | -17.6/+15.4 | 146 | 120 | 109 |
11’0″ | -16.0/+14.0 | 140 | 114 | 104 |
12’0″ | -12.0/+10.0 | 121 | 99 | 90 |
Model 977WL Wind Load Ratings
TDI# GDR-156
FL# 28798.2
Less than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
|---|---|---|---|---|
8’0″ | -42.0/+38.3 | 234 | 192 | 174 |
9’0″ | -37.3/+34.0 | 222 | 181 | 165 |
10’0″ | -32.0/+29.6 | 206 | 169 | 153 |
11’0″ | -29.1/+26.9 | 197 | 161 | 146 |
12’0″ | -26.7/+24.7 | 189 | 155 | 141 |
13’0″ | -24.2/+22.7 | 181 | 148 | 134 |
14’0″ | -21.8/+20.4 | 172 | 141 | 128 |
Greater than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
|---|---|---|---|---|
8’0″ | -42.0/+38.3 | 224 | 183 | 167 |
9’0″ | -37.3/+34.0 | 212 | 174 | 158 |
10’0″ | -32.0/+29.6 | 197 | 161 | 146 |
11’0″ | -29.1/+26.9 | 189 | 154 | 140 |
12’0″ | -26.7/+24.7 | 181 | 148 | 135 |
13’0″ | -24.2/+22.7 | 173 | 142 | 129 |
14’0″ | -21.8/+20.4 | 165 | 135 | 122 |
Contact your Trac-Rite sales representative for rating based upon your specific project, 800-448-8979.
* Based upon 8 ft. door height
* Based upon 4 ft. or greater from the building corner
* Based upon mean roof height of 20 ft.
* Based upon a 40’x120′ building footprint
* All pressures are negative ratings
Category B
Urban and suburban areas, wooded areas, or other terrain with numerous closely spaced obstructions having the size of single-family dwellings or larger
Category C
Open terrain with scattered obstructions having heights generally less than 30 feet
Category D
Flat, unobstructed areas exposed to wind flowing over large bodies of water
Model 977
After reviewing the complete installation instructions, you will find that Trac-Rite 977 doors are easy to install!
Installation Outline
- Attach door brackets to header.
- Attach chain hoist and tensioning device.
- Hoist door in place and attach door to brackets.
- Attach guides, tension the door, cut bands, and install door stops.
You’re now ready to use your Trac-Rite 977 door!
Model 977WL
After reviewing the complete installation instructions, you will find that Trac-Rite 977WL doors are easy to install!
Installation Outline
- Attach door brackets to header.
- Attach chain hoist and tensioning device.
- Hoist door in place and attach door to brackets.
- Attach guides, tension the door, cut bands, and install door stops.
You’re now ready to use your Trac-Rite 977WL door!
Door Colors
Note: Colors shown vary from actual material. For an accurate color sample, please contact Trac-Rite Door at 800-448-8979
Yellow
Sunset Orange
Patriot Red
Crimson Red
Garnet
Cedar Red
Lime Green
Wasabi
Evergreen
Fern Green
Teal
Smart Blue
Polar Blue
Royal Blue
Midnight Blue
Bright White
Iced White
Desert Tan
Light Stone
Ash Gray
Shale
Silhouette Gray
Dark Charcoal Gray
Continental Brown
burnished slate
Matte Black
Galvalume
Door Measuring
Step 1
FOR EXAMPLE:
If your framed opening is 7’6″ wide and 8’0″ high, you would order a 7’6″W x 8’0″H (width first, height second) door. A = Width B = Height
Step 2
Measure the mounting surface areas. NOTE: All mounting surfaces must be flush.
977 Door | 977 |
|---|---|
BRACKETS C = Width D = Height | 7.5″ and 4.5″ 13″ |
GUIDES E= Width | 3″ (5″ masonry jambs) |
Step 3
Measure the door clearance. NOTE: Insulated doors require an additional 1″ of back room and head room.
977 Door | 977 | 977WL |
|---|---|---|
F = Back Room
G = Head Room H = Side Room | 20″ 22″ 7.5” and 4.5″ | 21″ 23″ 7.5″ and 4.5” |
Step 4
Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.
Step 5
Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.
*Trac-Rite strongly suggests contacting your local building inspector before placing an online order. The inspector will be aware of any wind load requirements for your area. Should you require certain wind loads, please contact Trac-Rite at 1-800-448-8979 to place your door order. Our Website is not able to accommodate specific wind load requirements.
