STEEL ROLL UP DOORS
988 Roll Up Door
The Trac-Rite® 988 door is designed for commercial uses in everything from shipping docks and warehouses to car washes and auto body shops. Available in custom sizes from 10’W x 8’H to 18’W x 18’H in 1″ increments, the 988 features a 26-gauge, rigid-rib steel curtain that is durable, attractive, and requires little maintenance. The 988’s dead-axle design with torque tube assembly allows the door to operate with ease. Trac-Rite’s 988 door is the ideal choice for interior large door openings.
The 988WL earns high marks for strength. It’s ideal for a wide range of commercial uses. In addition, Trac-Rite’s windlock (WL) system provides maximum wind resistance for this model. As wind blows against the 988WL, the curtain’s windlocks (WL) engage with the door guide for a strong interlocking grip. This grip keeps the curtain securely in the guide.
Available in custom sizes from 11’W x 8’H to 18’W x 18’H in 1″ increments, the 988WL features a 26-gauge, rigid-rib steel curtain that is durable, attractive, and requires little maintenance. The 988WL’s dead-axle design with torque-tube assembly allows the door to operate with ease.
The 988 is available in custom sizes from 10’0″ to 18’0″ widths and 8’0″ to 18’0″ heights.
The 988WL is available in custom sizes from 10’0″ to 18’0″ widths and 10’0″ to 18’0″ heights.
Both door types are fabricated in 1″ increments.
PRODUCT FEATURES
Performance. Value. Service.
Helical Torsion Springs
Door Tensioner
Chain Hoist
Chain hoist mounts directly to the axle for easy installation. 8:1 reduced drive allows for smooth operation.
Bottom Assembly
Colors
Standard, prefinished colors.
Dark Charcoal Gray
Note: Colors shown vary from actual material. For an accurate color sample, please contact Trac-Rite Door at 800-448-8979
Model 988 & 988wl Doors are great for

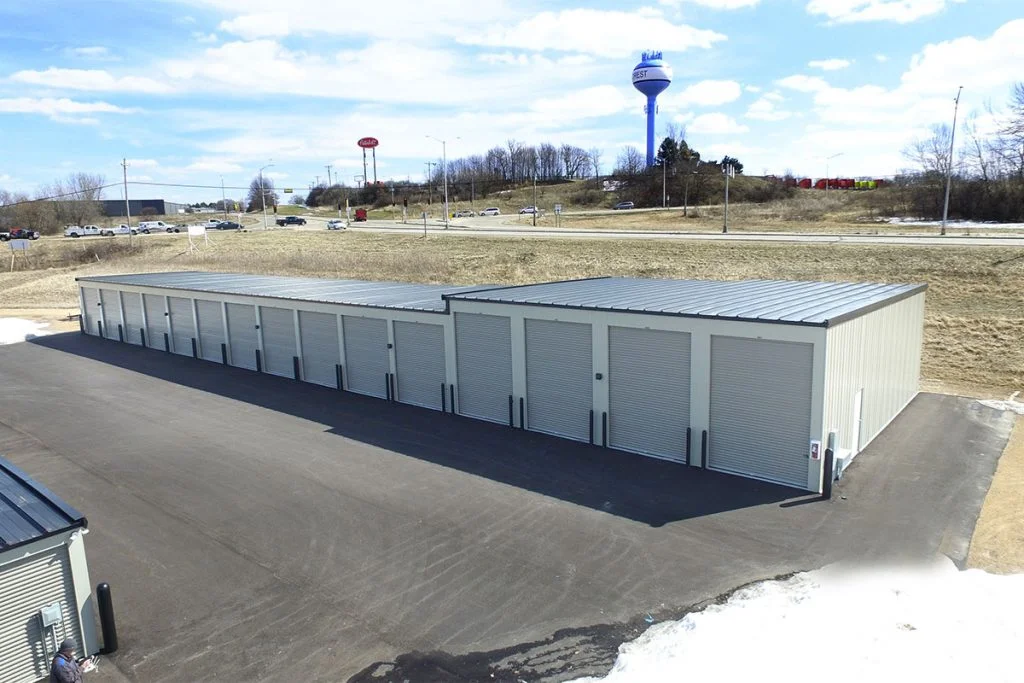

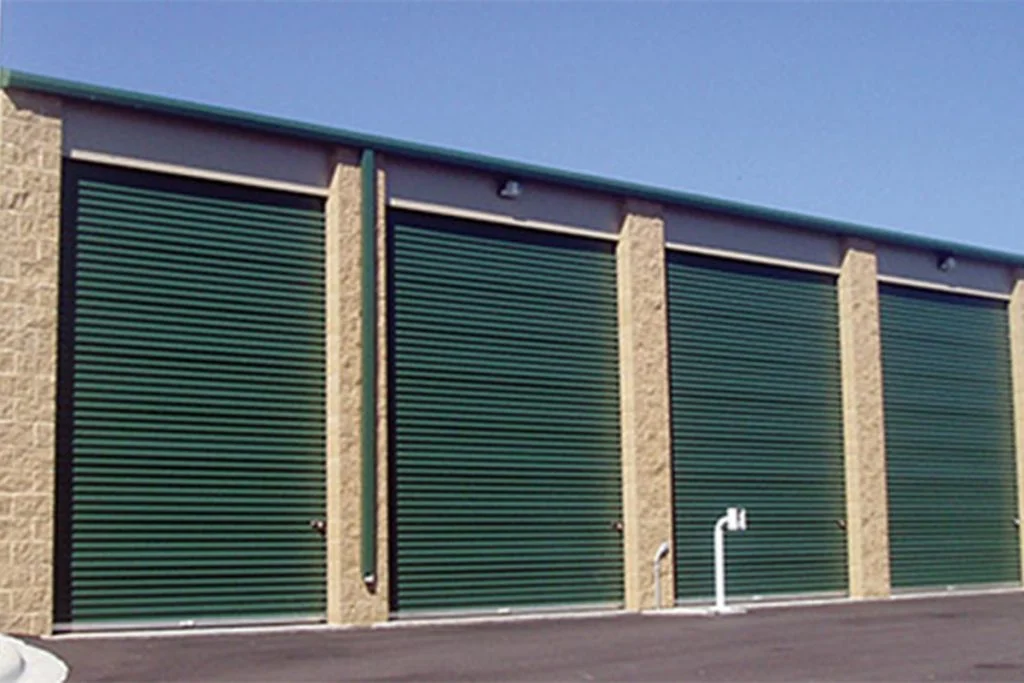

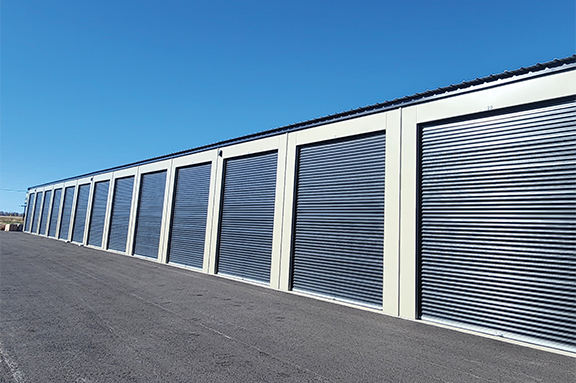

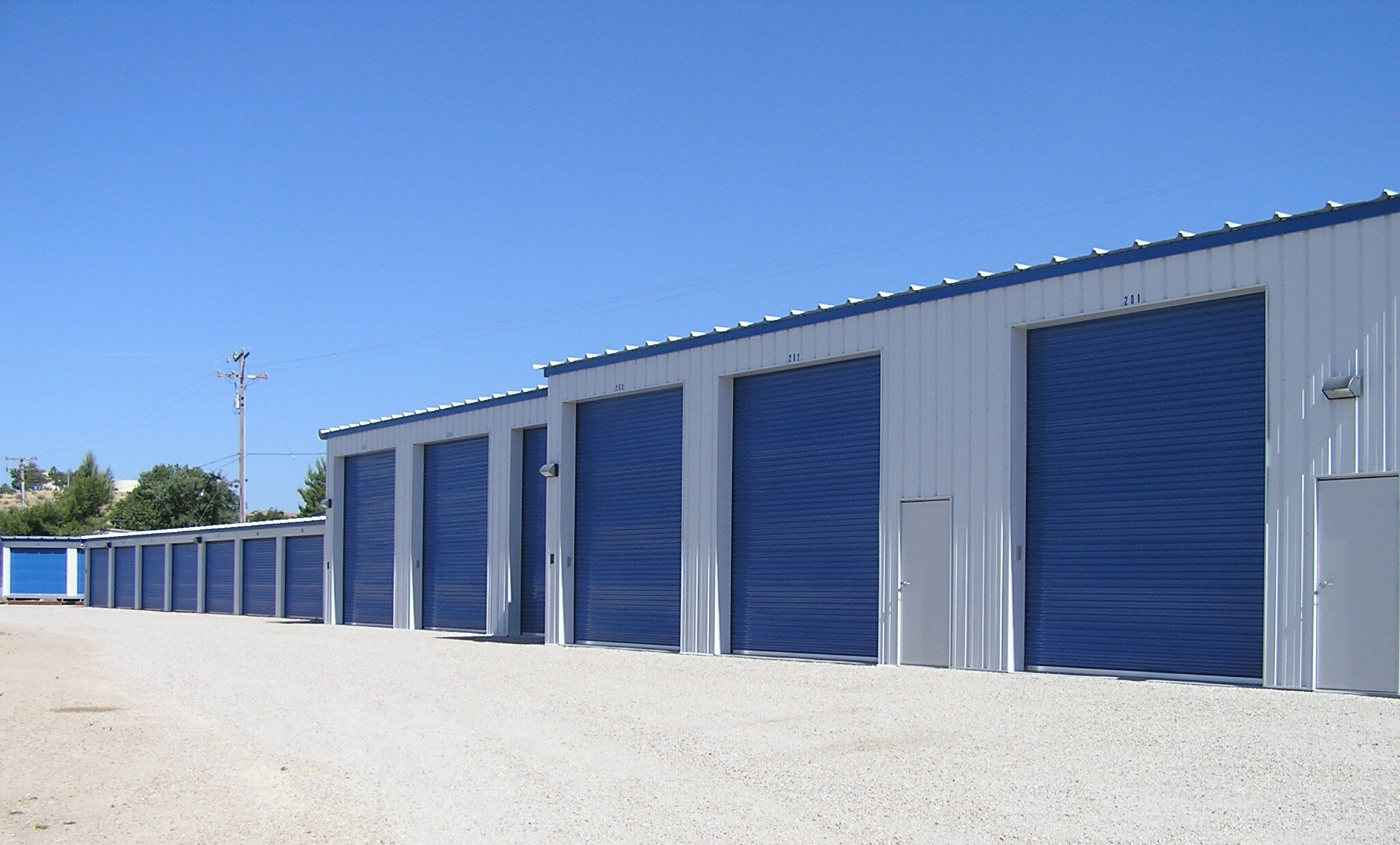

- Self-storage
- Shipping Docks

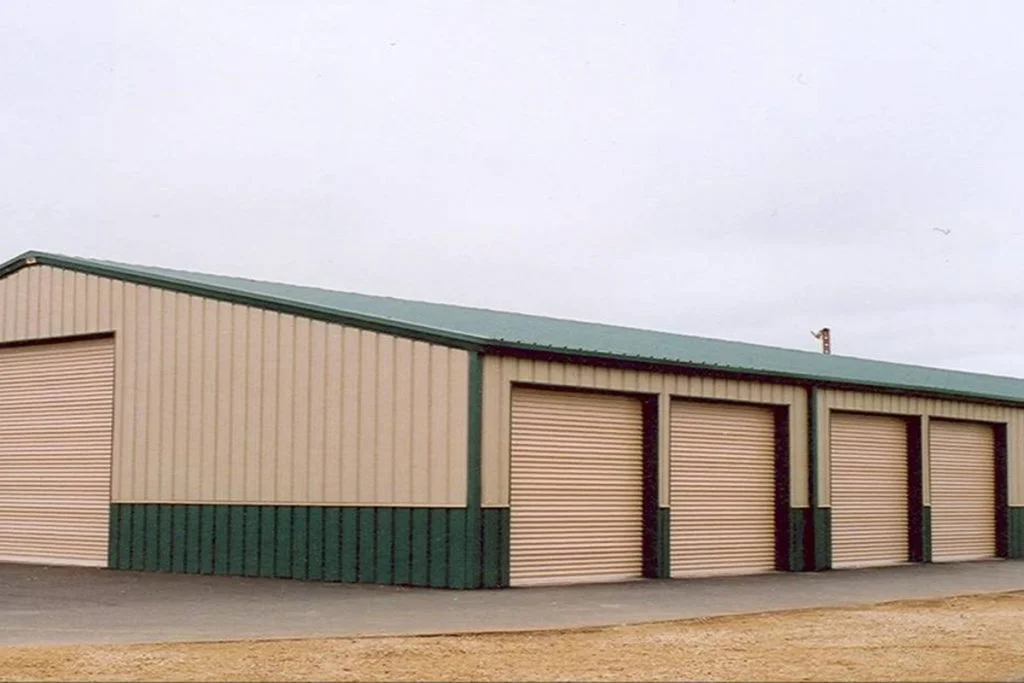

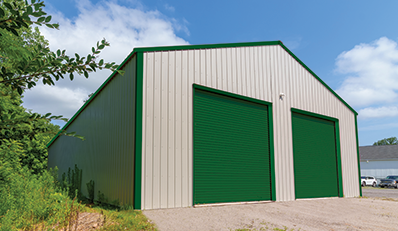

- Post Frame Buildings
- Machine Shops
- Agricultural Buildings
- Warehouses
- Auto Body Shops
- Fabric Span Structures
- High Eave Structures
Model 988
Design Type
- Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
- Axle is high-yield structural tubing with 1-5/16″ outside diameter. Drums are 12″ diameter spiral x 1-1/2″ wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. EP3 springs are helical torsion, oil tempered, and coated to halt corrosion and increase life. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
- Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2″ felt tape for smooth rolling and reduced marring.
Bottom Assembly
- Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
- Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
- Easily adjustable one-piece saddle accepts 1-5/16″ diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
- 6-gauge, zinc-coated, 2-3/4″ deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Chain Hoist
- 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Interior Latches
- 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two latches per door fasten to the bottom assembly and are suitable for padlocking.
Mounting Fasteners
- Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
Door Stop
- 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
NOTE: Product specifications are subject to change without notice.
Model 988WL
Design Type
- Dead axle design with torque-tube assembly. Rotates on a fixed axle during operation.
Torque-Tube Assembly
- Axle is high-yield structural tubing with 1-5/16″ outside diameter. Drums are 12″ diameter spiral x 1-1/2″ wide, 16-gauge, zinc-coated steel with grease-filled ball bearings mounted in the center of the drum to promote smooth operation. EP3 springs are helical torsion, oil tempered, and factory lubricated to increase life cycle. Axle, drums, and springs are enclosed in a 26-gauge galvanized spiral tube to provide even curtain support.
Curtain
- Roll-formed sections, factory seamed from 26-gauge, Grade 80 galvanized steel. Siliconized polyester finish in sixteen standard colors. Full-length 2″ felt tape for smooth rolling and reduced marring.
Bottom Assembly
- Seal-Rite pliable bulb and blade astragal integrated into galvalume bottom bar with stiffening angle.
Brackets
- Universal mounting brackets are interchangeable for mounting on the left or right side. 10-gauge, cold-formed, galvanized steel, embossed for added strength.
Saddle with Tensioner
- Easily adjustable one-piece saddle accepts 1-5/16″ diameter axle. Double cams lock the axle in position and maintain tension on the springs.
Guides
- 16-gauge, zinc-coated, 2-3/4″ deep. Featuring polypropylene guide runners to assure smooth operation and prevent steel-on-steel contact.
Curtain Windlocks
- 10-gauge, zinc-coated steel, secured to door with two 3/16″ rivets.
Windlock Bar
- Galvanized, 12-gauge with holes for fastening to jamb every four inches. Placed inside the guide.
Chain Hoist
- 8:1 reduced-drive. Mounts directly to the axle on either the left or right side.
Interior Latches
- 12-gauge, zinc-coated steel slide bolt engages a lock strike attached to the side guide. Two latches per door fasten to the bottom assembly and are suitable for padlocking.
Mounting Fasteners
- Steel or wood fasteners included. For masonry openings, mounting clips and anchoring system are sold separately.
Door Stop
- 12-gauge, zinc-coated, L-shaped door stops. Mounts to guides.
NOTE: Product specifications are subject to change without notice.
Model 988WL Wind Load Ratings
Less than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
---|---|---|---|---|
10’0″ | -52.8/+48.0 | 262 | 215 | 196 |
11’0″ | -48.0/+43.6 | 251 | 206 | 187 |
12’0″ | -44.0/+40.0 | 241 | 198 | 180 |
13’0″ | -40.2/+36.6 | 231 | 190 | 172 |
14’0″ | -37.3/+34.0 | 223 | 183 | 166 |
15’0″ | -34.1/+29.9 | 216 | 177 | 161 |
16’0″ | -32.0/+28.0 | 209 | 172 | 156 |
17’0″ | -30.1/+26.4 | 203 | 166 | 151 |
18’0″ | -28.4/+24.9 | 197 | 162 | 147 |
Greater than 2:12 Roof Pitch
WIDTH | PSF | Exposure Cat B (MPH) | Exposure Cat C (MPH) | Exposure Cat D (MPH) |
---|---|---|---|---|
10’0″ | -52.8/+48.0 | 251 | 206 | 187 |
11’0″ | -48.0/+43.6 | 240 | 197 | 179 |
12’0″ | -44.0/+40.0 | 231 | 189 | 172 |
13’0″ | -40.2/+36.6 | 221 | 181 | 165 |
14’0″ | -37.3/+34.0 | 213 | 175 | 159 |
15’0″ | -34.1/+29.9 | 207 | 170 | 154 |
16’0″ | -32.0/+28.0 | 200 | 164 | 149 |
17’0″ | -30.1/+26.4 | 194 | 159 | 145 |
18’0″ | -28.4/+24.9 | 189 | 155 | 141 |
Model 988
After reviewing the complete installation instructions, you will find that Trac-Rite 988 doors are easy to install!
Installation Outline
- Attach door brackets to header.
- Attach chain hoist and tensioning device.
- Hoist door in place and attach door to brackets.
- Attach guides, tension the door, cut bands, and install door stops.
You’re now ready to use your Trac-Rite 988 door!
Model 988WL
After reviewing the complete installation instructions, you will find that Trac-Rite 988WL doors are easy to install!
Installation Outline
- Attach door brackets to header.
- Attach chain hoist and tensioning device.
- Hoist door in place and attach door to brackets.
- Attach guides, tension the door, cut bands, and install door stops.
You’re now ready to use your Trac-Rite 988WL door!
Door Colors
Note: Colors shown vary from actual material. For an accurate color sample, please contact Trac-Rite Door at 800-448-8979
Yellow
Sunset Orange
Patriot Red
Crimson Red
Garnet
Cedar Red
Lime Green
Wasabi
Evergreen
Fern Green

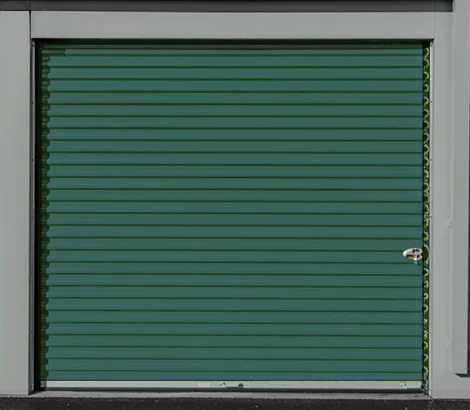

Teal
Smart Blue
Polar Blue
Royal Blue
Midnight Blue
Bright White
Iced White
Desert Tan
Light Stone
Ash Gray
Shale
Silhouette Gray
Dark Charcoal Gray
Continental Brown
burnished slate
Matte Black
Galvalume
Matte Black
Matte Black
Matte Black
Door Measuring
Step 1
Measure your framed opening. Doors are custom made to 1″ increments in both width and height.
FOR EXAMPLE:
FOR EXAMPLE: If your framed opening is 7’6″ wide and 8’0″ high, you would order a 7’6″W x 8’0″H (width first, height second) door. A = Width B = Height
Step 2
988 Door | 988 | 988WL |
---|---|---|
BRACKETS C = Width D = Height | 7 1/2″ 13″ | 7 1/2″ 13″ |
GUIDES E= Width | 3″ (5″ masonry) | 3″ (5″ masonry) |
Step 3
Measure the door clearance. NOTE: Insulated doors require an additional 1″ of back room and head room.
988 Door | 988 | 988WL |
---|---|---|
F = Back Room G = Head Room H = Side Room (includes standard Chain Hoist) H = Chain Hoist | 20″ 22″ 7 1/2” 22″ | 21″ 23″ 7 1/2” 22′ |
Step 4
Choose Model 944, 944WL, 977, 977WL, 988, or 988WL from the Door Model Selection Chart. If you are unsure of the best choice for your particular application, consider how your door will be used. The Model 944 is ideal for residential and light-duty needs. Model 988 offers the largest door dimensions. The “WL” models may be needed when building codes require a specific PSF rating.
Step 5
Once you have completed the four preliminary steps for determining your needs, you are ready to order your door.
*Trac-Rite strongly suggests contacting your local building inspector before placing an online order. The inspector will be aware of any wind load requirements for your area. Should you require certain wind loads, please contact Trac-Rite at 1-800-448-8979 to place your door order. Our Website is not able to accommodate specific wind load requirements.
